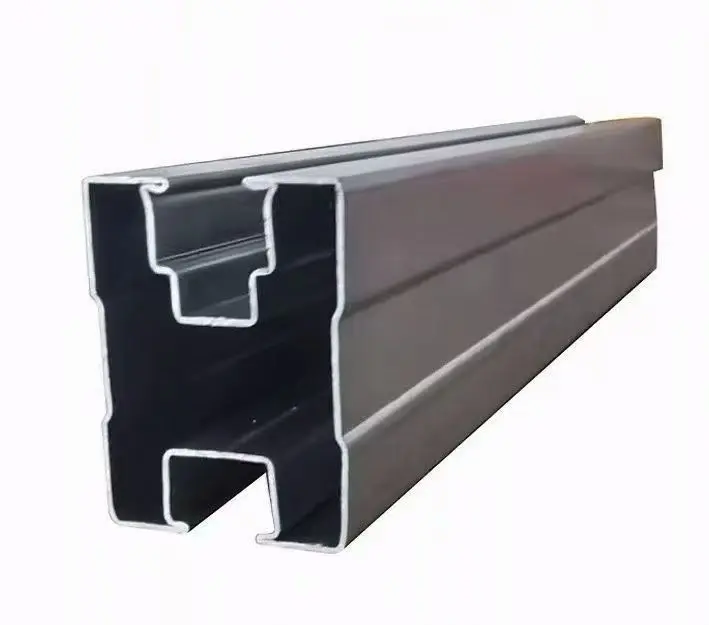

Zinc-Aluminum-Magnesium guide rails are cold-formed steel photovoltaic (PV) mounting rails. Manufactured from S350GD Zn-Al-Mg coated steel strip via cold-roll forming, they are shaped directly into slotted profiles for PV installation, eliminating the need for post-forming hot-dip galvanizing. The coating consists of a ternary alloy of zinc, aluminum, and magnesium; a dense, passivating protective film forms at cut edges and areas with scratches or dents, providing self-healing protection. These rails are compatible with the vast majority of PV modules on the market and support on-site cutting, punching, and assembly.
Zinc-Aluminum-Magnesium guide rails offer excellent salt-spray resistance and self-healing protection at cut edges. This lowers maintenance costs associated with rust removal, anti-corrosion touch-ups, and profile replacement over the project's operational lifespan, resulting in a superior total cost of ownership (TCO) over the 25–30 year lifecycle compared to standard hot-dip galvanized rails.
As the base material is pre-coated with the Zn-Al-Mg alloy, no further hot-dip galvanizing is required after cold-forming. This eliminates time lost to queuing for external galvanizing services and associated transportation, while removing an external anti-corrosion processing step. Consequently, delivery schedules for large orders are more controllable, aligning better with construction milestones and preventing project delays caused by anti-corrosion processing bottlenecks.
The steel base material offers higher mechanical strength than aluminum alloy rails of the same cross-section; for long-span applications, there is no need to increase the profile's cross-sectional size, thereby controlling material costs. Although the raw material unit price is higher than that of standard hot-dip galvanized steel, the material prevents premature failure and costly rework in highly corrosive environments.
For projects in coastal or industrial areas, these rails mitigate the risk of plant shutdowns and maintenance caused by mounting structure corrosion failure, ensuring continuous power generation revenue. For investors and EPC contractors seeking long-term, stable returns, this minimizes generation losses due to mounting structure failures and safeguards the project's return on investment (ROI).
You can order our Zn-Al-Mg guide rails，H-rails, non-standard guide rails and complete sets of clamps and anchor bolts in a single transaction. This minimizes the communication costs associated with managing multiple suppliers, ensures a unified source and consistent quality standards, prevents dimensional mismatches between components from different manufacturers, and reduces on-site rework. It also streamlines procurement processes such as reconciliation, customs clearance, and logistics.
| Parameter Item | Technical Specification |
|---|---|
| Substrate Grade | S350GD+ZM zinc-aluminum-magnesium steel strip |
| Coating Composition | Zinc‑Aluminum‑Magnesium ternary alloy coating |
| Common Coating Weight | 275g/㎡ (adjustable according to project requirements) |
| Profile Wall Thickness | 1.0mm /1.2mm /1.5mm (customizable) |
| Common Section Sizes | 41×41, 40×60, C-type chute rail; special-shaped sections available upon request |
| Standard Delivery Length | 4m, 6m, arbitrary fixed cutting length supported |
| Compatible Modules | All types of monocrystalline, PERC, TOPCon PV modules |
| Standard Supporting Accessories | Mid clamps, end clamps, stainless steel fasteners, grounding components |
| Application Scenarios | Commercial & industrial rooftops, ground-mounted PV power stations, photovoltaic carports; coastal, high humidity and industrial acid rain corrosive environments |
| Execution Standards | EN10346, Chinese GB/T standards, material certificates available |
Guojian Steel’s Zinc-Aluminum-Magnesium guide rail products have been exported in bulk to over thirty countries and regions, including Southeast Asia, the Middle East, Central Asia, and Europe.
Suitable for distributed PV systems on islands (high temperature and humidity) and C&I (commercial and industrial) rooftop projects; bulk supply of standard Zn-Al-Mg slotted rails and complete accessory kits.
Zinc-Aluminum-Magnesium guide rails with thickened Zn-Al-Mg coatings are provided to withstand high temperatures and sandy/dusty environments, suitable for ground-mounted PV plants and PV carport projects.

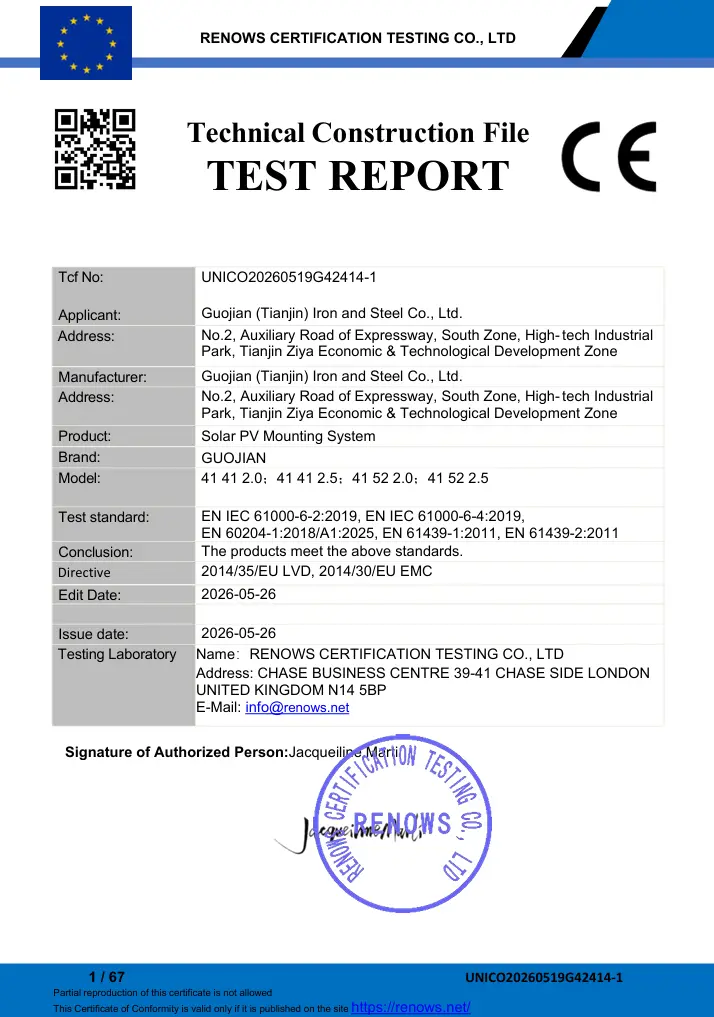

Products meet relevant CE and EN standards, supplying C&I rooftop and agrivoltaic projects. Our foreign trade team is well-versed in overseas project bidding, third-party testing, and customs/shipping procedures. We can provide third-party test reports (e.g., TUV, SGS) to meet the requirements of overseas EPC contractors and importers for bulk orders, backed by years of practical experience in exporting Zn-Al-Mg steel profiles.
We provide tailored product selection plans based on project-specific factors such as salt spray ratings, wind and snow loads, and actual roof conditions. Physical samples can be sent to facilitate customer testing of material properties and salt spray resistance.
For non-standard orders involving punching or special profiles, production begins only after both parties confirm the processing drawings. During production, we provide visual updates—including raw material verification, profile forming, and finished product sampling—to keep customers informed of project progress.
In the event of transit damage, customers simply submit on-site photographic evidence; we then rapidly verify the issue and implement solutions such as supplying replacement parts.
We provide a 25-year anti-corrosion warranty for our Zinc-Aluminum-Magnesium guide rails, covering material defects and coating process flaws. The warranty excludes damage caused by manual welding or cutting, external impacts, extreme corrosive environments, or natural disasters. Paid services—such as the supply of spare parts and technical consultation—remain available after the warranty period expires. We also conduct regular follow-ups on project performance after order delivery.

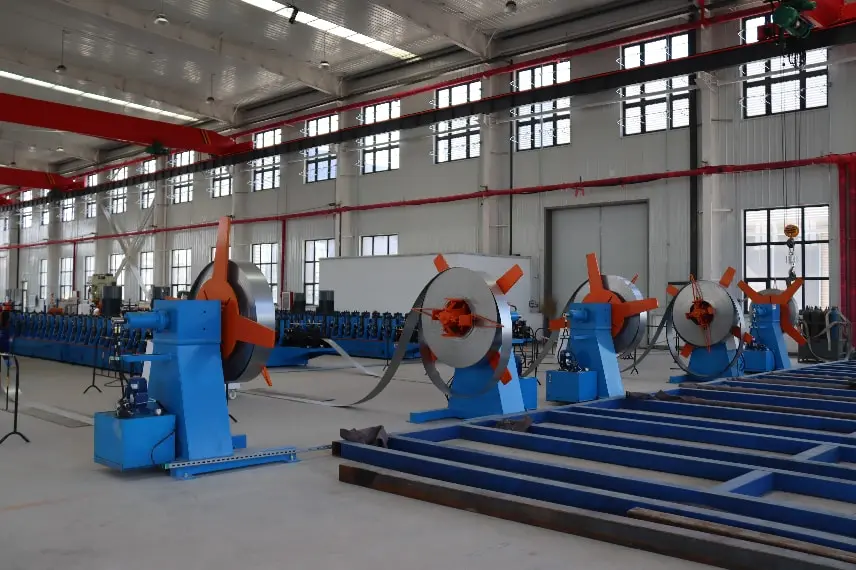

Guojian handles the entire production process for Zinc-Aluminum-Magnesium guide rails—including roll forming, precision cutting, and CNC punching—in-house; we are not merely a trading intermediary. Our factory boasts an annual capacity of 200,000 tons, enabling rapid scheduling for large-volume orders. We maintain a comprehensive internal quality control system, inspecting everything from raw materials to forming dimensions, punching precision, and coating appearance. We also manufacture a full range of photovoltaic profiles, including H-rails, non-ribbed rails, custom-shaped rails, and aluminum alloy rails, allowing customers to source various rail types and accessories from a single location. Our proximity to Tianjin Port ensures excellent logistics for both domestic and international shipments.
A: The Zn-Al-Mg coating features self-healing properties; when the cut edge is exposed to humid air, a dense protective film forms to prevent corrosion. However, it cannot fully withstand long-term, direct exposure to heavy seawater spray.
A: While Zinc-Aluminum-Magnesium guide rails resist salt spray and moisture, they cannot withstand prolonged, direct seawater washing or spraying. For projects in tidal zones, we recommend using a thicker coating and increasing the frequency of inspections.
A: Under normal conditions, painting is unnecessary as the cut edge possesses self-healing capabilities; however, for special projects involving tidal zones or highly corrosive environments, anti-corrosion paint can be applied for extra protection.
A: The coating specification must match the project's operating conditions; a thicker coating is not necessarily better. In standard inland environments, an excessively thick coating leads to unnecessary procurement costs; we provide recommendations for appropriate coating specifications based on the specific project environment.
A: High-quality Zinc-Aluminum-Magnesium coatings offer excellent high-temperature resistance, making them suitable for hot, windy, and sandy desert environments. For projects exposed to strong winds and blowing sand, we recommend increasing the coating thickness to mitigate abrasive wear.
A: CNC punching does damage the coating locally; however, a self-healing passivation film forms on the cut edges, ensuring the overall corrosion resistance remains intact. This is a normal result of the manufacturing process.
