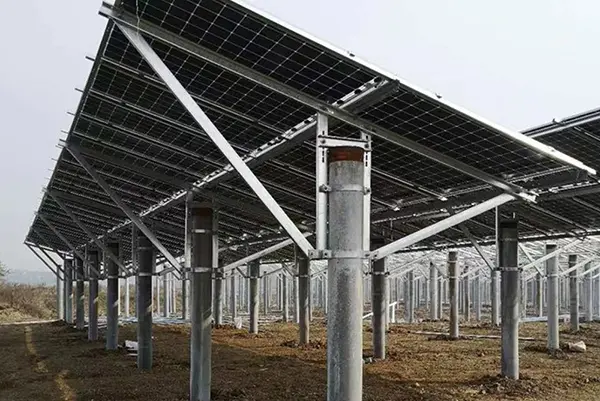

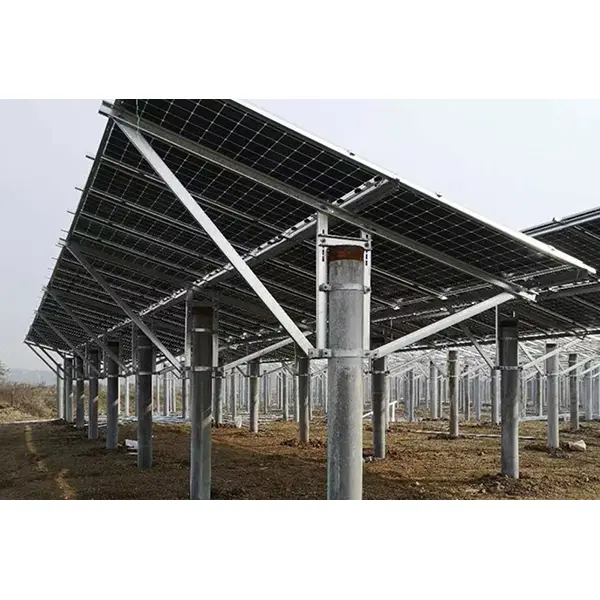

All the components of this Ground Single‑Post Solar Mounting Systemm are pre-processed in the factory by Guojian manufacturers. On-site, only bolt assembly operations are used, without the need for welding or secondary cutting. This simplifies the construction process while ensuring the quality of the project.
1. Structural Composition: A fixed support system featuring a single-post design as the primary load-bearing element; the complete load-bearing framework comprises the post, crossbeam, diagonal brace, guide rail, clamps, and a full set of standard fasteners.
2. Foundation Compatibility: Compatible with two mainstream foundation types—screw piles and independent concrete footings—and adaptable to diverse terrains, including flat ground, gentle slopes, farmland, and tidal flats.
3. Installation Process: All components are prefabricated in the factory; on-site assembly relies solely on bolting, eliminating the need for hot work (welding) or secondary cutting, thereby ensuring quality while simplifying construction.
4. Corrosion-Resistant Materials: The main structure utilizes Q235B structural steel (compliant with national standards) and undergoes high-temperature hot-dip galvanizing, offering resistance to wind, sand, rain, snow, and mild saline-alkali corrosion, ensuring durability for long-term outdoor use.
5. Customization Capabilities: Tilt angles, post heights, and array spacing can be adjusted based on project latitude and wind/snow loads to meet specific power generation requirements for different sites.
1. Civil Engineering Cost Savings: Fewer post locations result in a reduction of over 30% in piling and concrete work compared to dual-post systems, lowering overall costs.
2. Agrivoltaic Compatibility: Wide post spacing and customizable ground clearance allow for the passage of agricultural machinery and crop cultivation beneath the panels.
3. High Construction Efficiency: Fully bolted assembly and interchangeable components significantly shorten on-site construction time.
4. Durability: Galvanization thickness meets standards, providing resistance to wind, sand, rain, snow, and mild saline-alkali corrosion, with a 25-year anti-corrosion warranty on the main structure.
5. Flexible Customization: Dimensions are adjusted based on local wind/snow loads and terrain; anti-corrosion measures can be enhanced for high-salinity or extreme wind/snow conditions.
6. Comprehensive Documentation: Factory shipments include certificates of conformity, test reports, and load calculation documents, simplifying project acceptance and the bidding process.
Ground Single‑Post Solar Mounting System is suitable for large-scale centralized ground-mounted PV plants, agrivoltaic bases, idle factory land, distributed PV in villages and towns, and coastal tidal flat PV projects; applicable to various domestic and international renewable energy EPC projects. Production & Quality Control
Raw materials undergo incoming spectral analysis; components are formed via integrated CNC processing and precision punching, followed by pickling and galvanizing. Finished products undergo dimensional verification and mechanical sampling tests before packaging and shipment. Profiles are bundled with steel strapping, and fasteners are moisture-proof packaged.
Factory visits are welcome, and real-time workshop photos/videos are available.
Yes, a complete set of uprights, crossbeams, diagonal braces, clamps, and bolts is included.
Installation drawings are included, and online video support is available to guide the entire construction process.
Load calculations can be performed based on local wind and snow pressure requirements; the system fully complies with PV power plant design standards and maintains structural stability during extreme weather.
Installation must strictly adhere to drawing specifications, and bolts must be tightened to the prescribed torque. Regularly inspect connections after heavy rain, snow, or strong winds; for installations on tidal flats, inspect the galvanized coating annually. Do not hang overweight objects on the mounting structure.
