This supplier of Arc‑Shaped Adjustable Solar Mounting Bracket utilizes an integrated, seamless forming process, precision CNC punching, and fully mechanized rolling. On-site welding is eliminated in favor of modular bolted assembly, keeping installation flatness deviations within 2mm. This effectively prevents construction issues such as micro-cracks in modules and structural deformation, while significantly shortening construction schedules and reducing costs. Compared to traditional mounts, these high-quality arc-style adjustable PV mounts are lightweight, highly corrosion-resistant, versatile, easy to transport, and efficient to install. The entire product line is ISO9001 certified and undergoes 100% factory inspection to ensure stable, controllable quality.
1. Innovative adjustment structure with high tilt adaptability: Features an arc-shaped hinged adjustment mechanism allowing for continuous, free tilt adjustment between 5° and 60°, flexibly adapting to solar conditions across different latitudes.
2. Significant power generation gains: Standard manual adjustable models boost output by 8%–12%; optional smart tracking models can increase generation by up to 30%.
3. High-strength, corrosion-resistant base material suitable for harsh environments
Main steel structure: Uses high-strength Q235 and Q550 steel;
Anti-corrosion coating: Zinc-Aluminum-Magnesium coating with a density of 120g/m²;
Corrosion resistance: Passed 5,000-hour salt spray test;
Wind and load resistance: Withstands Beaufort scale 13 winds; load capacity of 200kg/m²;
Applicable scenarios: Suitable for various harsh outdoor conditions, including coastal areas with high salinity, humid mountainous regions, and tidal flats.
4. Advanced manufacturing and high installation precision: Utilizes a seamless, integrated CNC punching and forming process with a modular, bolted assembly design, eliminating the need for on-site welding. Installation flatness deviation is controlled within 2mm, effectively preventing issues such as micro-cracks in PV modules and structural deformation.
5. Flexible procurement, transport, and customization: Features a lightweight overall structure that facilitates long-distance transport and on-site stacking. Supports both standardized bulk procurement and non-standard customization based on specific project requirements.
6. Extended warranty and durable structure: Comes with a 20-year warranty; the main structure offers long-term stability and an extended service life.
1. Base material and anti-corrosion treatment: The main body is constructed from Q235/Q550 high-strength structural steel, featuring a 120g/m² Zinc-Aluminum-Magnesium anti-corrosion coating. It has passed a 5,000-hour neutral salt spray test, ensuring resistance to rust and aging during long-term outdoor use.
2. Precision forming process: Employs a seamless, integrated precision rolling and CNC punching process, ensuring accurate dimensional positioning and robust structural stability.
3. Angle adjustment mechanism: Equipped with an arc-shaped hinged adjustment mechanism offering a 5°–60° adjustment range; the mechanism operates smoothly and resists jamming or deformation over long-term use.
4. Load-bearing and wind resistance: Rated for wind resistance up to Beaufort scale 13, with a maximum load capacity of 200kg/m², ensuring reliable performance under harsh outdoor conditions.
5. Installation and Construction Advantages: Features a modular design with fully bolted assembly—eliminating the need for on-site welding—and maintains installation flatness within a 2mm tolerance.
6. Module Compatibility: Supports various configurations, including single-module and multi-row array layouts; compatible with mainstream monocrystalline and bifacial PV modules on the market.
7. Customization Capabilities: Rack width and span specifications can be optimized and adjusted to meet specific requirements, accommodating diverse site conditions.

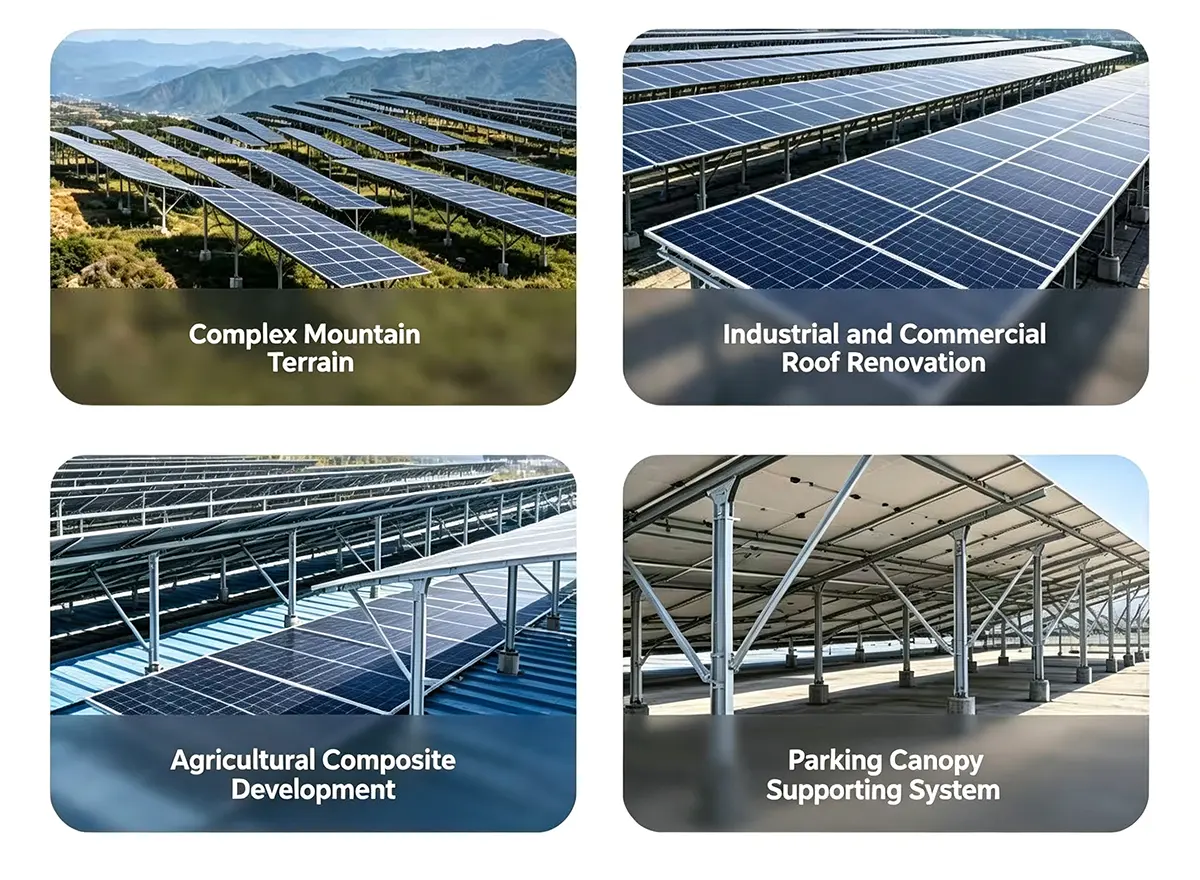

1. Covers Diverse PV Project Scenarios: Suitable for a wide range of projects, including C&I (commercial and industrial) color-steel tile roofs, distributed PV on tiled roofs, ground-mounted PV plants on mountainous terrain, fishery-PV and agrivoltaic systems, PV carports, and energy-saving PV retrofits for older residential communities.
2. Adaptable to Complex Outdoor Environments: Suitable for installation across various topographies and environments, including open plains, undulating mountainous terrain, tidal flats, and coastal areas prone to high humidity and typhoons.
3. Extensive Project Experience (Domestic & International): Successfully implemented over a hundred benchmark projects—including coastal wind-resistant power plants, rural agrivoltaic systems, industrial park rooftop PV, and large-scale PV carports—with products also exported to multiple countries across Southeast and South Asia.
4. Comprehensive Real-World Visual Support: For all collaborative projects, we provide actual photos and videos covering factory production, loading and shipment, and completed construction sites.
5. One-stop customized solution service: We provide module layout plans based on site topography and lighting conditions, offering comprehensive integrated solutions that include the mounting structure.
1. Standardized quality control system and authoritative testing credentials: Production adheres to ISO9001 quality management standards; we possess comprehensive third-party test reports covering anti-corrosion properties and mechanical load-bearing capacity.
2. End-to-end closed-loop quality control: We have established a complete quality control chain covering raw material intake, stamping and forming, coating inspection, and finished product sampling.
3. Phased and multi-level inspection standards
Raw material intake: Spectroscopic analysis of steel material;
Semi-finished product stage: Verification of punching precision and forming dimensions;
Finished product stage: Standardized salt spray simulation tests and load-bearing pressure tests.
4. Strict factory-exit inspection requirements: We implement a 100% inspection policy for all products before they leave the factory, preventing defective items from entering the market at the source.
Automated production and batch traceability management: Equipped with proprietary automated production lines utilizing precision mechanical rolling; samples from every batch are archived to ensure full batch traceability.
Professional independent testing laboratory: An on-site independent laboratory conducts routine weather-resistance and aging simulation tests to continuously verify the product's outdoor durability.
Complete and verifiable testing documentation: Electronic and hard copies of all qualification certificates and test reports are available upon request.
Most standard adjustable mounting brackets on the market utilize simple hinge structures, making them highly susceptible to jamming, rusting, and failure of adjustment limiters during long-term outdoor use. In contrast, our arc-style bracket features an upgraded, thickened arc-shaped hinge structure that ensures even load distribution, preventing deformation or seizing during years of outdoor operation. While most competing products offer only fixed-increment adjustments, our product enables stepless, continuous adjustment between 5° and 60°, maximizing solar exposure and increasing power generation yields.
|
Comparison Dimension |
Standard Adjustable Mounts on the Market (Competitor Products) |
Guojian Arc-Type Adjustable PV Mount (Our Product) |
|
Hinged Main Structure |
Simple hinge structure; stress is concentrated; prone to jamming or seizing due to deformation during long-term outdoor use. |
Upgraded, thickened, patented arc-hinge structure; stress is evenly distributed; resistant to deformation and jamming during long-term outdoor operation. |
|
Angle Adjustment Capability |
Stepped/fixed-position adjustment; limited angle options; cannot fully align with the optimal solar incidence angle. |
Stepless continuous adjustment (5°–60°); flexibly tracks sunlight to maximize PV power generation yields. |
|
Steel Anti-Corrosion Coating |
Thin coating; low anti-corrosion standards; prone to rust and corrosion within 3–5 years in hot, humid coastal environments. |
National standard high-strength Q355/Q235 steel; stable Zinc-Aluminum-Magnesium coating (≥120g/m²); salt-spray and corrosion-resistant; highly durable for long-term use in coastal areas. |
|
Supply and Customization |
Standardized finished products only; poor support for non-standard modifications; long lead times for customization. |
Direct manufacturer with a production capacity of over 10,000 tons, ensuring stable supply; supports extensive customization for non-standard sizes and specific terrain requirements. |
|
Project Technical Support |
Supply only; does not include technical site surveys or layout planning. |
Pre-sales engineers conduct on-site surveys and consultations; free layout plans provided, including CAD drawings, load calculation data, and construction schemes. |
|
Long-term Reliability |
Simple structural limiting mechanisms; limiting functions prone to failure in outdoor environments with wind, sand, and temperature fluctuations. |
Concealed locking mechanism ensures secure fixation; integrated design adapts to complex outdoor conditions such as mountainous terrain, tidal flats, and coastal areas. |
1. Dedicated One-on-One Pre-sales Technical Support: Professional pre-sales engineers provide dedicated project follow-up, creating free preliminary plans for mounting structure layouts and tilt angle selection based on actual site conditions.
2. Complete Technical Documentation Delivery: CAD construction drawings and technical data regarding mechanical load calculations are provided upon order placement; both hard-copy and digital installation manuals are included with the shipment.
3. Multi-format Installation Guidance: Remote online installation guidance is available after shipment, supported by illustrated manuals and standardized instructional videos; for large-scale or complex projects, technical personnel can provide real-time online assistance to resolve installation challenges.
4. Long-term comprehensive warranty: A 20-year warranty covers the entire unit. We provide complete solutions—including repairs and parts replacement—for any structural quality issues caused by non-human factors during the warranty period.
5. Efficient after-sales response mechanism: Our after-sales team is on duty 16 hours a day, 7 days a week. We provide feedback on routine inquiries within 2 hours and deliver comprehensive solutions for complex technical issues within 24 hours.
6. Lifetime free technical support for customers: We provide ongoing technical services to our partners, including free end-to-end consultation for new project plans.
There are three core points to consider: First, foundation construction—this must account for terrain and load calculations; for mountainous areas, ensure pile foundation stability, and for coastal areas, implement robust wave-resistant anchoring. Second, tilt angles and locking mechanisms—adjustable or tracking mounts require mechanical locking after adjustment, and adjustments are strictly prohibited during high winds (speeds exceeding 20–25 m/s) or heavy snow. Third, routine maintenance—regularly inspect for rust, anchor tension (critical for flexible mounting systems), and module clamps to prevent module micro-cracks or structural instability.
Compared to fixed mounts, manual or electric adjustable mounts (with seasonal tilt adjustments) can boost power generation by 5%–10% in mid-to-high latitude regions; single-axis tracking mounts can increase output by 15%–20%, and dual-axis tracking mounts by 25%–30%. Whether the investment is worthwhile depends on project scale: small-scale residential projects should prioritize fixed mounts (due to lower costs), while for medium-to-large ground-mounted plants, the choice depends on local sunshine duration and electricity tariffs—tracking or adjustable mounts typically offer a return on investment within 3–5 years.
Mainstream materials include carbon steel (hot-dip galvanized), aluminum alloy, stainless steel, and polymer materials (carbon fiber/aramid). Carbon steel is the preferred choice for standard land-based projects due to its cost-effectiveness and corrosion resistance. For coastal, salt-spray, or "fishery-PV complementary" environments, aluminum alloy or stainless steel is preferred to enhance corrosion resistance. Polymer materials are suitable for high-altitude locations or scenarios requiring lightweight structures; although costs are higher, they offer significant advantages in terms of weight reduction.
PV mounting systems are primarily categorized into four types: fixed mounts, adjustable mounts (manual/electric), flexible mounts, and tracking mounts (single-axis/dual-axis). Fixed mounts are suitable for small-scale ground-mounted or rooftop projects with limited budgets and flat terrain. Adjustable mounts are ideal for mid-to-high latitude regions, as their tilt angles can be modified seasonally to boost power generation. Flexible mounts are suited for complex terrains—such as mountainous areas or "fishery-solar hybrid" projects—and long-span applications. Tracking mounts are best for large-scale ground-mounted plants in deserts or plains with abundant sunlight; while they offer the highest power generation efficiency, they also entail higher costs and maintenance requirements.
1. Standardized modular packaging design: Arc‑Shaped Adjustable Solar Mounting Bracket are disassembled into modules and packaged according to standards. Long profiles are secured with thickened woven bags and reinforced with steel strapping; small accessories—such as bolts, connectors, and hinges—are sorted and packed in separate waterproof woven bags with clear labeling to prevent loss or mixing.
2. Dual-layer rain protection suitable for long-distance transport: The entire shipment features rain-resistant protection, capable of withstanding long-distance sea or land transit and resisting abrasion during loading/unloading as well as damage from rain and humidity.
3. Compatible with multiple transport modes: Goods can be shipped directly to the project site via truck or packed into containers to meet overseas export requirements.
4. Direct shipment from our own factory with flexible, controllable delivery times: Shipments originate directly from our manufacturing facility in Tianjin; standard-specification items are available from stock...
– Orders are dispatched within 7 days; production schedules for large-scale custom orders can be negotiated to confirm delivery timelines.
5. Fully visible shipping process for easy verification: For every shipment, we provide real-time photos of the loading process and a detailed cargo manifest. Items are counted and verified piece-by-piece before loading, and the documentation/images are shared with the client to facilitate easy checking upon receipt.
