Components undergo all Paint Anti‑Corrosion Coated Steel Structure machining processes—such as cutting, drilling, welding, and shaping—before surface rust removal and multi-stage spray painting. A comprehensive anti-corrosion layer is formed by combining a primer (which anchors to the substrate), an intermediate coat (which thickens the protective barrier), and a topcoat (which resists UV radiation and weathering).
Components are prefabricated in the factory and assembled on-site using bolts, minimizing the need for on-site welding. Unlike hot-dip galvanizing, the spray painting process is not constrained by component shape; it accommodates irregular and oversized parts and facilitates convenient, rapid replenishment.
Spray painting does not alter the steel's material properties; instead, it creates an external protective barrier.
Proper surface rust removal is critical to the coating's longevity; inadequate preparation leads to early peeling or flaking. The primer bonds firmly to the steel substrate, blocking the source of corrosion; the intermediate coat increases thickness, slowing moisture penetration; and the specialized outdoor topcoat resists UV-induced aging, fading, and chalking.
Note: Any impact damage compromises the coating, causing localized failure that requires immediate touch-up repairs. In high-salinity coastal areas or saline-alkali regions, the service life of a spray-painting-only solution is significantly reduced.
• High production flexibility; seamless processing of large, non-standard parts
Unconstrained by galvanizing bath dimensions, the process handles irregular brackets, large frames, and miscellaneous embedded parts, making it ideal for small-batch orders.
• Customizable aesthetics; colors matched to the project's overall style
Paint colors can be mixed to match project specifications, ensuring visual uniformity and a clean, cohesive look for industrial facilities or municipal projects.
• Rapid production and short lead times
Eliminates the long cooling periods associated with high-temperature hot-dip galvanizing; components move directly to painting after welding, making this ideal for tight schedules and urgent replenishment orders.
• Low maintenance requirements
Coating damage caused by on-site drilling or transport impacts can be repaired on-site with touch-up paint, eliminating the need to return components to the factory.
• Flexible Costing to Suit Various Budgets
Coating thickness and paint grades can be selected based on specific needs; specifications can be tailored for indoor/light-duty versus outdoor/exposed environments to avoid unnecessary costs.
Product Types: Non-standard steel components such as square/round tubes, channel steel, angle steel, welded frames, equipment bases, maintenance platforms, support frameworks, embedded parts, and connection plates.

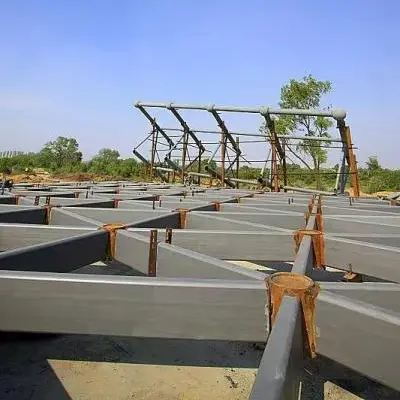

Suitable Scenarios: Steel frameworks for inland industrial parks, factory equipment support structures, main steel frames for parking shelters, indoor/outdoor equipment racks, municipal inland fencing structures, and auxiliary steel frames for standard inland/mountainous photovoltaic (PV) installations.
Not Recommended For: Coastal areas with salt spray, saline-alkali soil environments, or sites subject to long-term exposure to corrosive chemical exhaust.
1. Incoming material inspection (material grade and dimensions)
2. CNC cutting, hole punching, bending, and welding; grinding welds smooth
3. Rust removal via sandblasting or power tools (removing mill scale, loose rust, and oil/grease)
4. Primer application; allowing the film to cure and dry completely
5. Intermediate coat application to increase the anti-corrosion barrier thickness
6. Topcoat application to achieve the specified color and weather resistance
7. Static curing period to ensure the paint film fully hardens
8. Spot checks on appearance and thickness; component labeling
9. Packaging and shipment
1. Drawing-to-Production Conversion: Quotes and production scheduling based on provided construction drawings; fabrication plans available based on load and environmental conditions if drawings are not provided.
2. Anti-Corrosion Specification Selection: Recommendations on paint grades based on indoor/outdoor use and wind/snow load requirements.
3. Order Progress Updates: Real-time photos provided at key milestones (e.g., coating, completion) to facilitate project schedule management.
4. Project Handover Documentation: Provision of material certificates, paint quality certificates, and other records for project inspection and archiving.
5. On-Site Technical Guidance: Paint Anti‑Corrosion Coated Steel Structure Guidelines provided for storage, lifting, coating protection, and repair of minor damage.
6. Logistics and Delivery: Full-truckload direct delivery to the site; less-than-truckload (LTL) shipping available nationwide.
1. Rust removal steps are never compromised; we strictly control the quality of the base surface to prevent the paint film from peeling or flaking later on.
2. We apply paint in multiple layers rather than cutting corners with a single thick coat, ensuring long-lasting corrosion resistance.
3. We handle non-standard and small-batch components; there is no need to wait for a full furnace load to start production, allowing for rapid response to replenishment needs.
4. Project coordination is clear, and schedules are locked in early, minimizing the risk of delays.
A: In dry inland environments—provided rust removal meets standards and the paint film remains intact—outdoor service life is typically 8–12 years. Lifespan decreases in humid or rainy regions, and failure to promptly repair minor impacts or scratches accelerates rusting.
A: Standard painting alone is not recommended for long-term coastal use; for coastal areas, we prioritize Aluminum-Magnesium-Zinc coatings or heavy-duty anti-corrosion paint systems.
A: On-site welding will burn the surrounding paint film; after welding, the area must be ground down and the full anti-corrosion coating system reapplied.
A: Color variation is controllable within a single production batch; slight differences may occur between batches. For projects with strict aesthetic requirements, we recommend producing the entire order in one batch.
A: Paint certificates of conformity and steel material specifications can be provided with the shipment; third-party paint film testing can be arranged upon request.
Use soft lifting slings whenever possible, as steel cables can easily scratch the paint film. Stack materials on raised supports away from standing water to prevent ground moisture from corroding the coating edges. Avoid rough handling during construction; if the coating is damaged, grind and touch up the paint immediately to prevent rust from spreading inward.
Communication of drawings/operational requirements → Technical assessment and quotation → Contract signing → Material cutting and welding → Rust removal and coating production → Quality inspection and dispatch → Delivery and handover of project documentation.
