Guojian's China Reinforced Cast-in-place Ground Pile is specifically designed for projects that bear heavy loads and strong wind pressures. It comes with comprehensive inspection documents and complies with civil engineering acceptance standards. We can customize the pile diameter and length based on geological survey reports and provide a complete supply solution that integrates the pile body, photovoltaic installation system, and steel structure components.
1. Guojian (Tianjin) Steel specializes in foundation engineering for photovoltaic (PV) and steel structure projects. Our cast-in-place reinforced concrete piles offer a high-load-bearing solution, commonly used for large and medium-sized PV and steel structure projects involving heavy loads and soft soil conditions, while fully complying with domestic civil engineering construction and acceptance standards.
2. Featuring a custom-designed rebar cage structure with uniform reinforcement distribution, the piles bond tightly with the concrete to ensure structural integrity. This design effectively enhances vertical load-bearing, uplift resistance, and lateral displacement resistance, making them suitable for regions subject to high winds and heavy snow loads.
3. Pile length, diameter, and reinforcement specifications can be flexibly adjusted based on geotechnical survey reports to meet varying soil bearing capacity requirements, effectively addressing settlement issues common in weak foundations such as silt and silty clay.
4. Construction is carried out in strict accordance with pile foundation standards, with rigorous quality control across all stages—including hole formation, hole cleaning, rebar cage installation, and concrete pouring. Upon completion, we provide static load and low-strain integrity test reports to meet supervision and project acceptance requirements.
5. Our technical team collaborates with general contractors to optimize foundation drawings and verify load-bearing capacities. We ensure seamless integration with our PV mounting systems and carport rectangular steel tubing, thereby reducing design coordination costs.
6. We offer integrated services covering raw material supply, rebar fabrication, and on-site construction. For large-scale PV cluster projects, we coordinate scheduling to ensure adherence to overall grid-connection milestones.

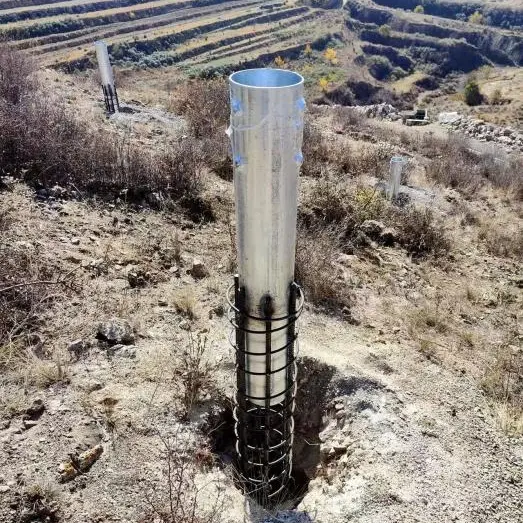

Reinforced Cast‑in‑place Ground Pile represent a traditional, highly reliable deep foundation method. The process involves drilling a hole into the ground, inserting a prefabricated rebar cage, and pouring concrete to form the pile. The structure supports the load above through a combination of side friction against the surrounding soil and end-bearing resistance. These piles are ideal for PV carports, centralized PV power plants, and steel structure projects where loads are heavy and geological conditions are poor—situations where the load-bearing capacity of screw piles would be insufficient.
1. High load-bearing capacity; suitable for heavy-load projects
Capable of withstanding significant vertical loads and strong wind-induced uplift forces; ideal for large-scale PV carports and high-capacity ground-mounted PV power plants. It offers distinct advantages on soft soil and backfill foundations by effectively controlling settlement.
2. Suitable for complex, weak soil layers
For sites prone to subsidence with shallow foundations—such as those with silt, backfill, or silty clay—cast-in-place piles can reach stable bearing strata, mitigating risks of future foundation settlement or racking tilt.
3. High rigidity and excellent overturning stability
Formed as an integral unit comprising a rebar cage and concrete, the pile offers high rigidity; it resists tilting or uplift under strong winds and heavy snow, making it ideal for renewable energy projects in coastal or high-wind areas.
4. Flexible parameter customization based on geotechnical data
Pile diameter, length, and reinforcement can be adjusted as needed; load-bearing calculations are based on geotechnical survey reports rather than generic designs, ensuring a balance between safety and cost-efficiency.
5. Comprehensive documentation for hassle-free compliance and acceptance
Upon completion, we provide reports on rebar cage raw materials, concrete test samples, and pile static load/integrity tests, meeting all requirements for civil engineering documentation and grid-connection acceptance.
6. Integrated steel structure support services
We offer simultaneous supply of PV mounting systems, hot-dip galvanized square/rectangular tubing, and connectors; the seamless integration of pile foundations and the superstructure minimizes communication errors associated with multiple suppliers.
1. Large-scale centralized PV power plants and high-load agrivoltaic projects
2. Foundations for long-span steel-structure PV carports and heavy-duty parking shelters in industrial parks
3. Foundations for steel-structure factory buildings and connecting corridors on soft fill or silty soil
4. New energy projects in coastal areas requiring high resistance to wind loads and snow accumulation, with strict standards for uplift and settlement control
1. Incoming material inspection: Sampling and re-testing of rebar and concrete raw materials to prevent substandard primary materials from being used in pile foundation construction;
2. Borehole inspection: Verification of hole depth, diameter, and sediment thickness to ensure the pile base rests on a stable bearing stratum;
3. Rebar cage acceptance: Inspection of rebar spacing, lap lengths, and concrete cover spacers to ensure reinforcement complies with design drawings;
4. Concrete pouring control: Continuous pouring to prevent pile discontinuity or slag inclusion, with simultaneous casting of test specimens;
5. Post-construction testing: Random testing for structural integrity (low-strain method) and static uplift load tests in accordance with standards, followed by the issuance of formal test reports.
Services include rebar cage fabrication and on-site construction photography; support is available for site surveys and technical briefings.
A: Screw piles are preferred for lighter loads and favorable soil conditions due to faster installation and lower costs. Cast-in-place concrete piles are preferred for soft soil, fill soil, heavy loads, or high-wind/heavy-load PV carports and power plants, as they offer superior settlement control and higher load-bearing capacity.
A: Yes. We provide a complete set of records—including rebar material certificates, concrete test specimen reports, pile foundation test reports, and construction logs—suitable for PV grid connection and civil engineering project filing.
A: Yes. We can issue specialized reinforcement and pile foundation plans based on the geotechnical survey report, loads from the overhead PV mounting structures, and local wind and snow pressure data.
A: It is calculated based on the project volume and geological conditions. Standard projects take 12–18 working days; large-scale cluster projects allow for simultaneous construction at multiple locations.
A: Yes. Guojian can separately fabricate and deliver custom rebar cages—cut and welded according to drawings—complete with material quality certificates.
1. Construction Management: Work performed by professional piling crews with full-process technical supervision; key stages—such as sediment control and continuous concrete pouring—are strictly monitored.
2. Delivery Documentation: Simultaneous delivery of construction records, photographic/video documentation, raw material quality certificates, and pile foundation testing reports.
3. Warranty Service: Execution strictly adheres to pile foundation standards; any quality issues arising during the warranty period are rectified at no cost. Our technical team provides full support for interfacing with the overhead steel structure and answering on-site technical queries.
1. Local Tianjin-based operations offering integrated services: combining pile foundation construction with the supply of PV steel structural profiles.
2. Years of experience in foundation support for renewable energy PV projects; familiarity with civil engineering acceptance standards for PV grid connection.
3. Full-chain control—from drawing verification and rebar cage fabrication to on-site pile installation—ensuring complete documentation traceability.
4. Technical team provides complimentary preliminary coordination regarding geotechnical surveys and load calculations, optimizing plans to control costs.
